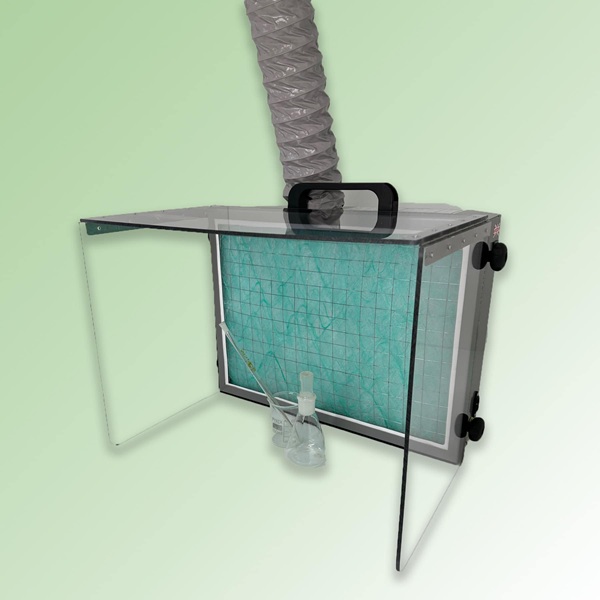

BENCHVENT BV500S-D Spray Booth

This unit is designed for immediate operator protection from concentrations of airborne contaminants whereby all gases, fumes, vapours and particulates within the hood enclosure are filtered and cleaned air is exhausted to the right rear of the cabinet. This model has been designed to be quiet in operation and can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.

The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles.

NB: Spray particulate sizes vary from 10 to 20 microns. The dual process of filtration and then extraction to atmosphere via flexi-duct, vastly reduces and/or eliminates operator exposure to potentially hazardous substances.

The carbon impregnated fibre filter (behind intake) assists in the reduction of solvent odours.

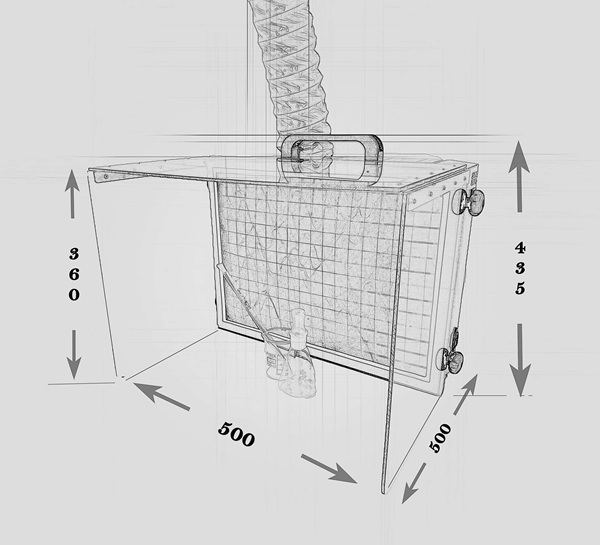

SpecificationsDimensions 570x435x500 (wxhxd) 11.5kg Weight Description Steel construction finished in grey – PETG spray/fume shield – particulate filter – centrifugal blower, external rotor motor type brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filter. Flexi-duct 2 metres x 100mm dia. Carry handle Air Volume at Free Air 355m3/hr Ave. Air Velocity at Filter Face 0.6m/sec Ave. Air Velocity at Shield Face 0.50 m/sec Fan Motor Spec 230V 50Hz 105W, 115V 60Hz 125W Filters Partilce Filter – IFA3 Carbon Impregnated – CHA3 Noise Level LAeq dB(A) 58 db(A)
