BENCHVENT BV660H-D (NEW)

BENCHVENT BV660H-D (NEW)

$1,995.00
BV660H-D – Ducted Fume Extraction Cabinet with Light
The BV660H-D is the BenchVent flagship hood mounted extract-to-atmosphere cabinet. It’s been designed to capture, contain, filter and expel harmful contaminants within electronic design & rework, dental/medical labs, pharmaceutical labs and classroom environments.

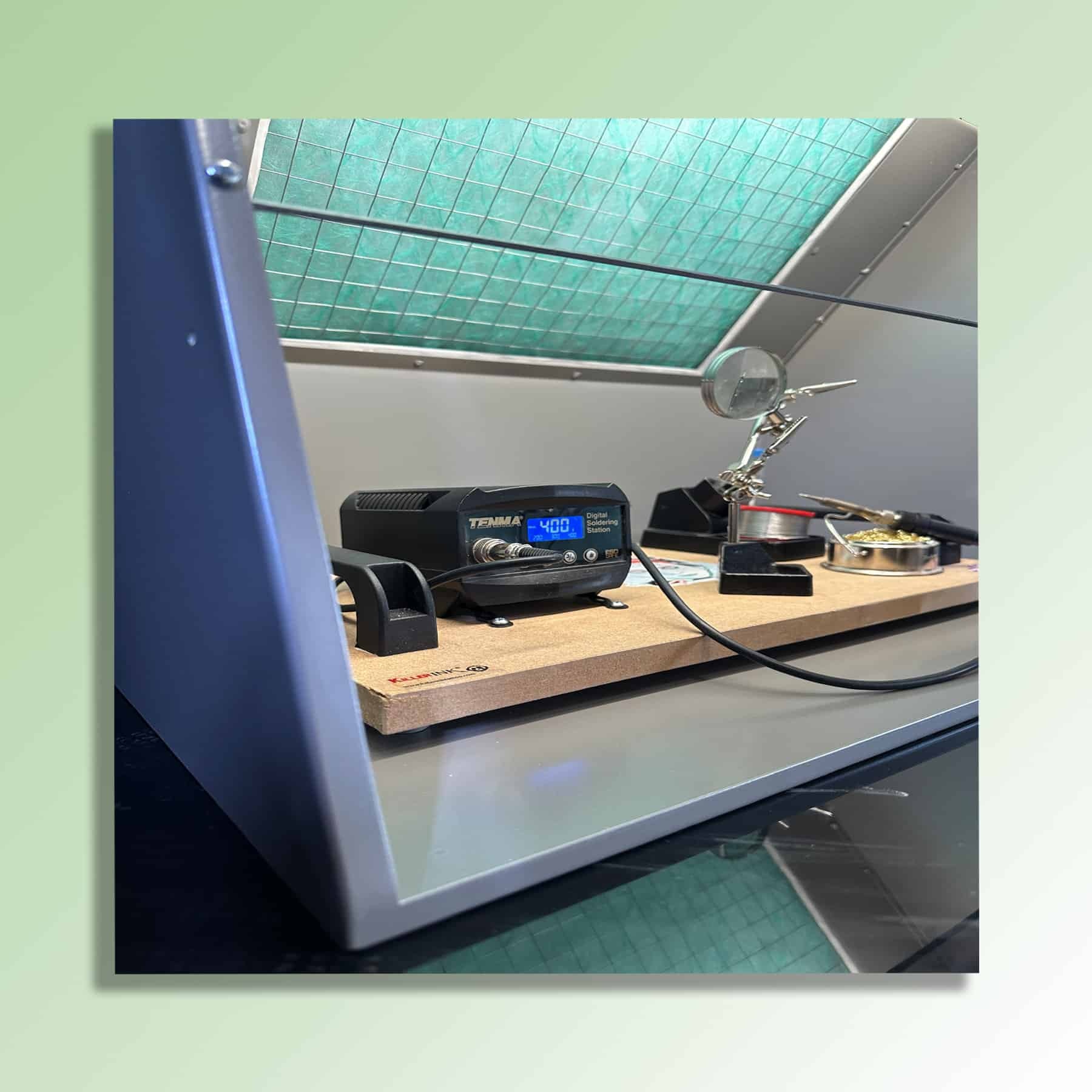

All handling and/or use of potentially harmful substances is carried out within the hood enclosure in front of the intake filter area. For artwork applications, standard A2 drawing board can be placed within the hood enclosure. The board fits at an angle for efficient over-spray capture.
These fume cabinets are designed for immediate operator protection whereby ‘large’ particulates (>5 microns) are filtered out and ‘fine’ particulates (<5 microns) together with odours, gases, vapours and fumes within the hood enclosure are exhausted to atmosphere via the flexi-duct.
The Flexi-ducts can be fixed to a standard domestic vent, 100mm in diameter.
Key Features:
  • 2mtrs flex-duct
  • Clear polycarbonate panel for protection
  • Hood lighting
What’s included with the BV660H-D:
  • Filter unit with centrifugal fan
  • Hood Enclosure
  • Hood Light
  • Polycarbonate front panel
  • Particulate filter
  • 2mtrs x 100mm dia flexi-duct
  • Power Lead
  • Data/Warranty Booklet
Stock # BenchVent / BV660-HD
Please select desired options cost automatically applied at checkout N/A (No Option Selected) Prices displayed in USD Dollar. UV660 Light $ 249.95, IFA3P - Particle Filters Pack of 6 ( $125.00 USD ), EPA495P – EPA Fine Particle Filter ( $195.00 USD ), HEPA495P – HEPA Fine Particle Filter ( $369.00 USD ).
PHONE NUMBER REQUIRED
Qty:
Operation Note:
All BenchVent filtration and extraction systems carry a lifetime warranty, are quiet in operation, and unit(s) can be
assembled in seconds. Place onto a desk, bench or trolley and then simply plug unit in, and switch on.
The Flexi-ducts can be fixed to a standard domestic vent, 100mm in diameter. All handling and/or use of potentially harmful substances is
carried out within the hood enclosure in front of the intake filter area. For artwork applications, standard A2 drawing boards can be placed
within the hood enclosure. The boards fit at an angle for efficient overspray capture.
High Quality Filters from BenchVent :
The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The dual process of filtration and then extraction to atmosphere via flexi-duct, vastly reduces and/or eliminates operator exposures to potentially hazardous substances.

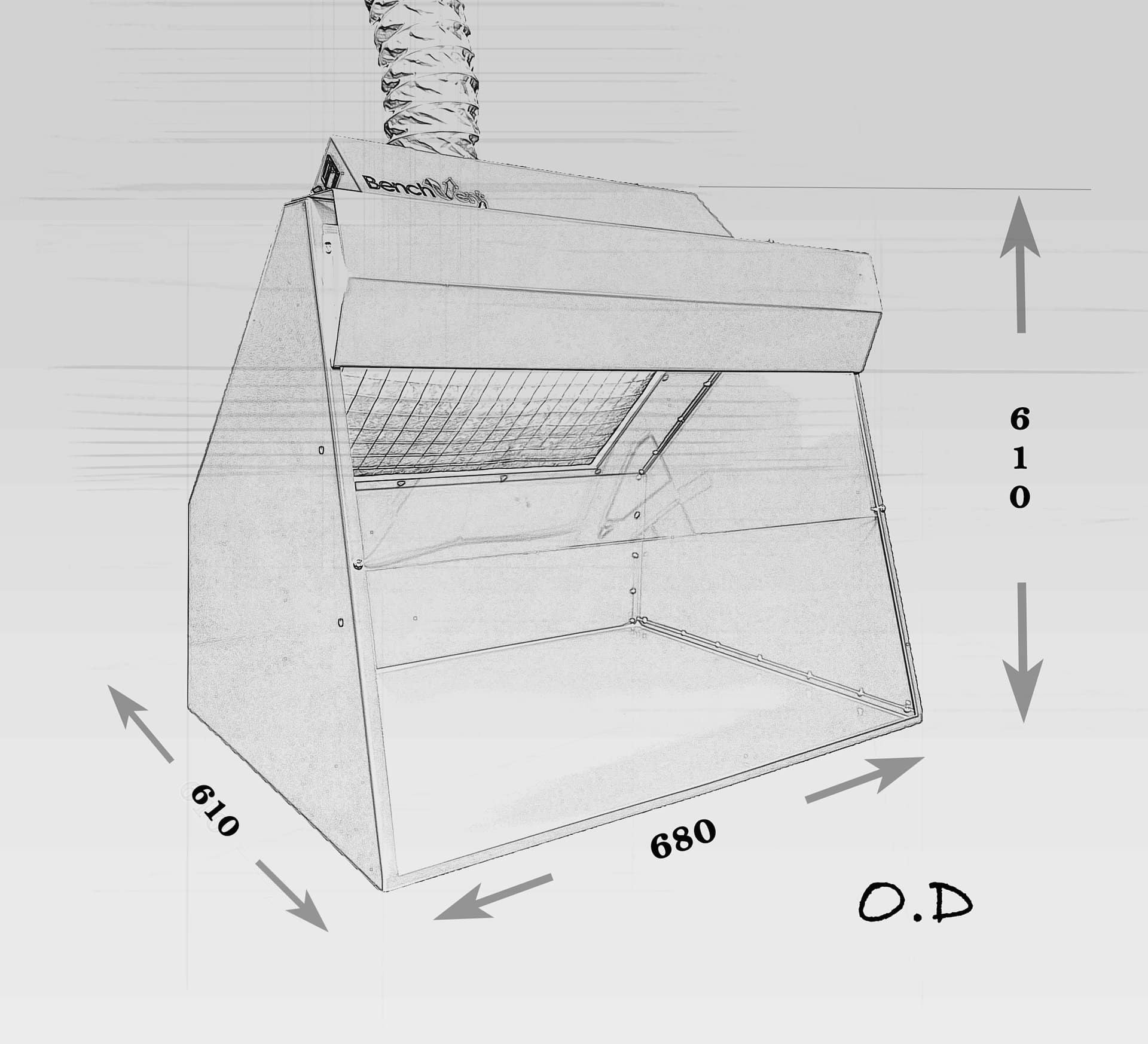

SpecificationsDimensions 675×445 (wxd) [internal] 680x610x610 (wxhxd) [overall] 26kg Weight Description Steel construction finished in grey – fan/filter unit mounted onto hood enclosure complete with clear polycarbonate panel and hood lighting – particulate filter – centrifugal blower, external rotor motor type, brushless, UL, VDE and CSA approved – sealed electrical wiring and switch, downstream of filter. Flexi-duct 2 metres x 100mm dia. Air Volume at Free Air 355 m3/hr Ave. Air Velocity at Filter Face 0.60 m/sec Ave. Air Velocity at Hood Face 0.55 m/sec Fan Motor Spec 230V 50Hz 45W, 115V 60Hz 125W Filters Standard Particle Filter – IFA3P Noise Level LAeq dB(A) 58 db(A)
How to Use
Product Ready To Use Out Of Box
Warranty
BENCHVENT LifeTime Warranty Terms and Conditions Apply.
Shipping Details
Customer will be invoiced via email the exact shipping cost. Signature will be mandatory on all purchases upon delivery. Shipping to be Courier only with Signature Due on Delivery. Please select the shipping option displayed on cart as "BenchVent Products ( Customer To Be Invoiced)" we will advise exact cost. then click " RECALCULATE " tab bottom left corner of cart page and checkout with Paypal. Tracking To Be Provided Once Order Has Shipped. WE DO NOT ACCEPT P.O. BOX ADDRESS.
Returns
FINAL SALE NO RETURNS,EXCHANGE,REFUND.
