Stay in Contact!

The X-Tatic SR supports chat applications from PS3™ and Xbox®, so that you can smoothly chat and triumph with your team.

Designate the Area of Operations!

Regardless of whether it's a PS3™, Xbox® or PC, the X-Tatic SR allows you to connect to all major platforms with its extensive accessories collection.

Enjoy the Commitment!

The X-Tatic SR offers all amenities you may expect from a modern headset with its cushioned headband, its individually adjustable, padded headphones and the flexible microphone.

Stay Independent!

The X-Tatic SR is powered via USB – no additional power supply hinders your mission.

Features:

Dolby® Headphone for multi-platform gaming (Xbox® 360, PS3™, PC etc.)

USB-powered, no additional power adaptor needed

Supports Xbox® Live

Supports the PlayStation® 3 chat function (via USB)

Flexible, detachable microphone

Microphone connected to Xbox® 360 controller (2.5 mm plug)

Microphone connected via USB (USB to PS3™)

In-line amplifier with volume controller and microphone mute

Game sound and chat volume can be separetly configured and individually adjusted. Thus your gaming partners are always clearly audible, because the chat volume control defines the loudness of your chat partners' voices.

Specifications (headphones):

Diameter: 40 mm with NdFeB magnet

Impedance: 32 Ω

Sound pressure level: 120dB +/- 3 dB at 1 KHz

Frequency response: 20 Hz – 20 kHz

Power output: 30 mW

Cable length: 410 cm +/-10 cm

Connector: 1x 6-pin analog plug

Specifications (microphone):

Diameter: 6 x 5 mm (L x B)

Directivity: omni-directional

Sensitivity: -58 dB +/- 3 dB

Impedance: 2.2 kΩ

Frequency response: 100 Hz – 2 kHz

Operating voltage: 4.5 V

Features Sound Control Unit (SCU):

Supports Dolby® Digital 5.1, Dolby® Pro Logic® II and Dolby® Headphone

Dolby® Headphone function can be activated/deactivated (stereo bypass)

3D stereo function (stereo expander) can be activated/deactivated

Analog and digital input

Supports the chat function of PS3®, Xbox® and Xbox® 360

Connector for additional stereo headset (3.5 mm line out)

Connector for additional analog sound source (3.5 mm line in)

Specifications (SCU):

1 digital optical input (S/PDIF)

1 analog 3.5 mm audio input (line in / stereo)

1 6-pin audio output for the X-Tatic SR headset (G6)

1 analog 3.5 mm audio output (line out / stereo) for additional headset

1 USB B connector (power and PS3® chat)

Dimensions: 22.5 x 106 x 63 mm (H x L x W)

Weight: ~89 g

Suitable for:

Game consoles (e.g. Xbox®, Xbox® 360 and PS3™)

PCs and Laptops

DVD and media players

Tablet PCs, Smartphones and MP3/MVP players (e.g. iPod®, iPad®, iPhone®)

Package contents:

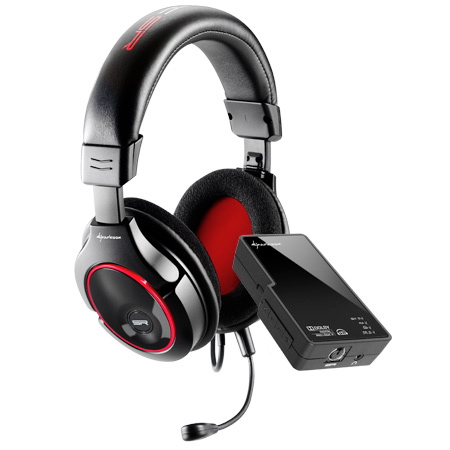

X-Tatic SR

Sound Control Unit (SCU)

Detachable microphone

Microphone connection cable for Xbox® 360 (3.5 mm jack > 2.5 mm jack)

Stereo connection cable (3.5 mm jack > 3.5 mm jack)

Stereo extension cable (3.5 mm plug > 3.5 mm jack)

Optical connection cable (S/PDIF)

USB2.0 cable (type A > type B)

G6 adapter cable (G6 > USB2.0 A and 2x 3.5 mm connectors)

Manual
